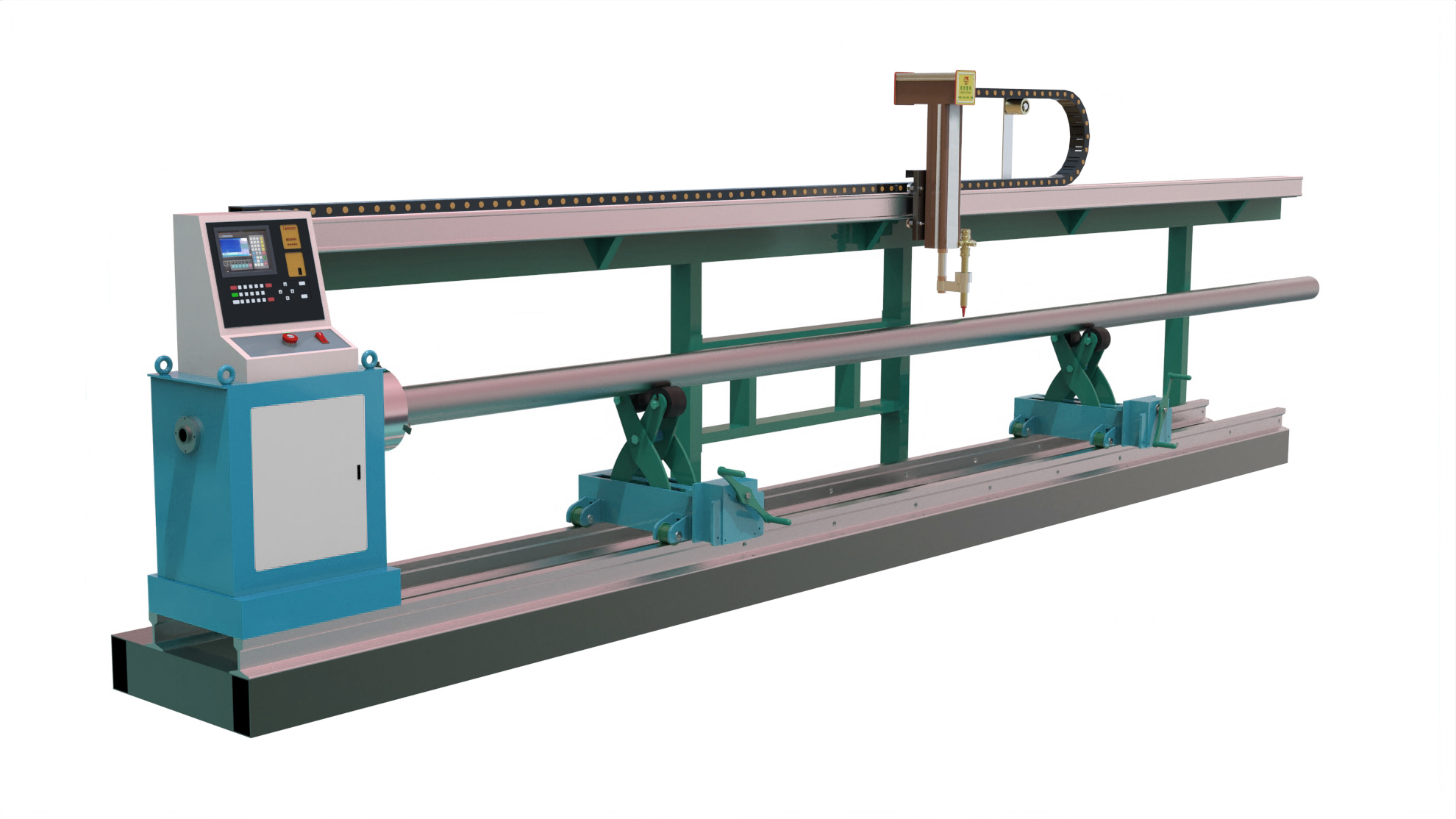

Pipe diameter range:30-1000mm

pipes weight: 1-3 ton

Chuck drive: powerful serve motor,moving stable,high precision

Pipes length: 6m,12m or customized

Cutting mode: plasma or flame




Pipe diameter range:30-1000mm

pipes weight: 1-3 ton

Chuck drive: powerful serve motor,moving stable,high precision

Pipes length: 6m,12m or customized

Cutting mode: plasma or flame



Our strength


1.competetive price in pipes CNC cutting machine area


2.good machine performance after sale

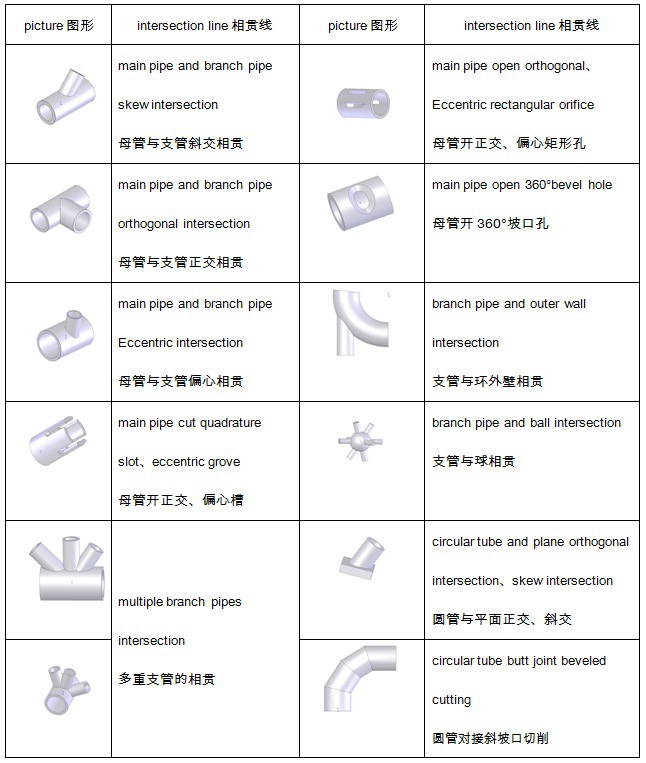

3.Our own Lansun CNC intersection system,can cut different many common or special shape of workpieces.


4.complete after sale service online or door to door technical support



Main Technical Data

(1) processing pipes specification

Pipe DN

1001000mm

Wall thickness

40mm

Cutting mode

Plasma & flame

Pipes length

12000mm

Pipes weight


(2) Machine axis and range of motion

Moving axis

Function of axis

Moving range

X axis

pipe rotation axis

360° free rotation

Y axis

Cutting torch moves the axis horizontally along the pipe axis


A axis

cutting torch swings along the axis of the pipe

A=±60°

B axis

Cutting torch swings along the radial plane of the pipe

B=±45°

Z axis

Cutting torch vertical lift axis

Moving range 160mm

W axis

Pipes ovality measuring axis

Moving range 20mm

(3) Loading mode of pipes

The round tube adopts a 3-jaw chuck structure, with multiple sets of long-axis roller frames. The maximum weight of the tube driven by the active frame is 2 tons. The minimum distance between the rollers of the roller frame is 400mm (part of the end), which can support the smallest straight pipe with a minimum length of 500mm. Pipe section of the pipe.

(4) Cutting speed

Flame cutting speed

100~750mm/min

Plasma cutting speed

It depends on plasma source

Moving speed

106000 mm/min

(5) Cutting torch movement repeat positioning accuracy≤±0.5mm/1000mm; Busbar       positioning accuracy≤±0.5mm Bevel positioning accuracy≤±0.5°

4. Main accessories

No.

Name

Specification

Brand

Quantity

1

Electrical control cabinet

ZLQ-XGEC

Wuhan Lansun

1pc

2

Intersecting line CNC system

ZLQ-XGCNC

Wuhan Lansun

1set

3

Intersecting line programming software

ZLQ-XGP2010

Wuhan Lansun

1set

4

Intersecting Line Control Software

ZLQ-XGC2010

Wuhan Lansun

1set

5

Servo drives and motors

A5 Series

Japan Panasonic

5pcs

6

Reducer


Xingxing

5pcs

7

Chuck support


Wuhan Lansun

2pcs

8

Adjustable steel tube bracket


Wuhan Lansun

3pcs

9

Machine assembly


Wuhan Lansun

1pc

10

24KG guide rail in Y direction


Wuhan Lansun

8pcs

11

Flame cutting torch



1pc

12

plasma cutting torch



1pc

13

Plasma source


Huarong

1set
