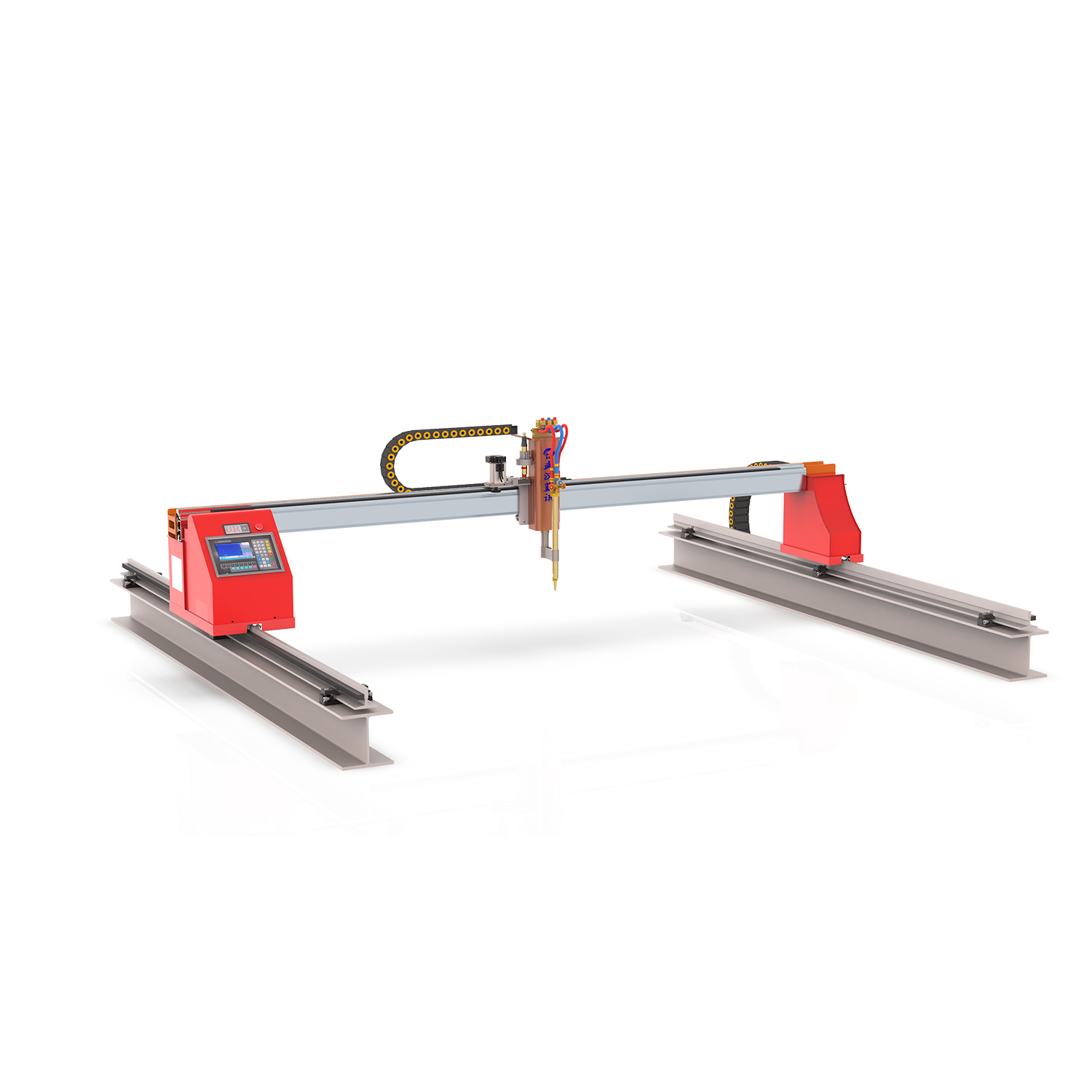

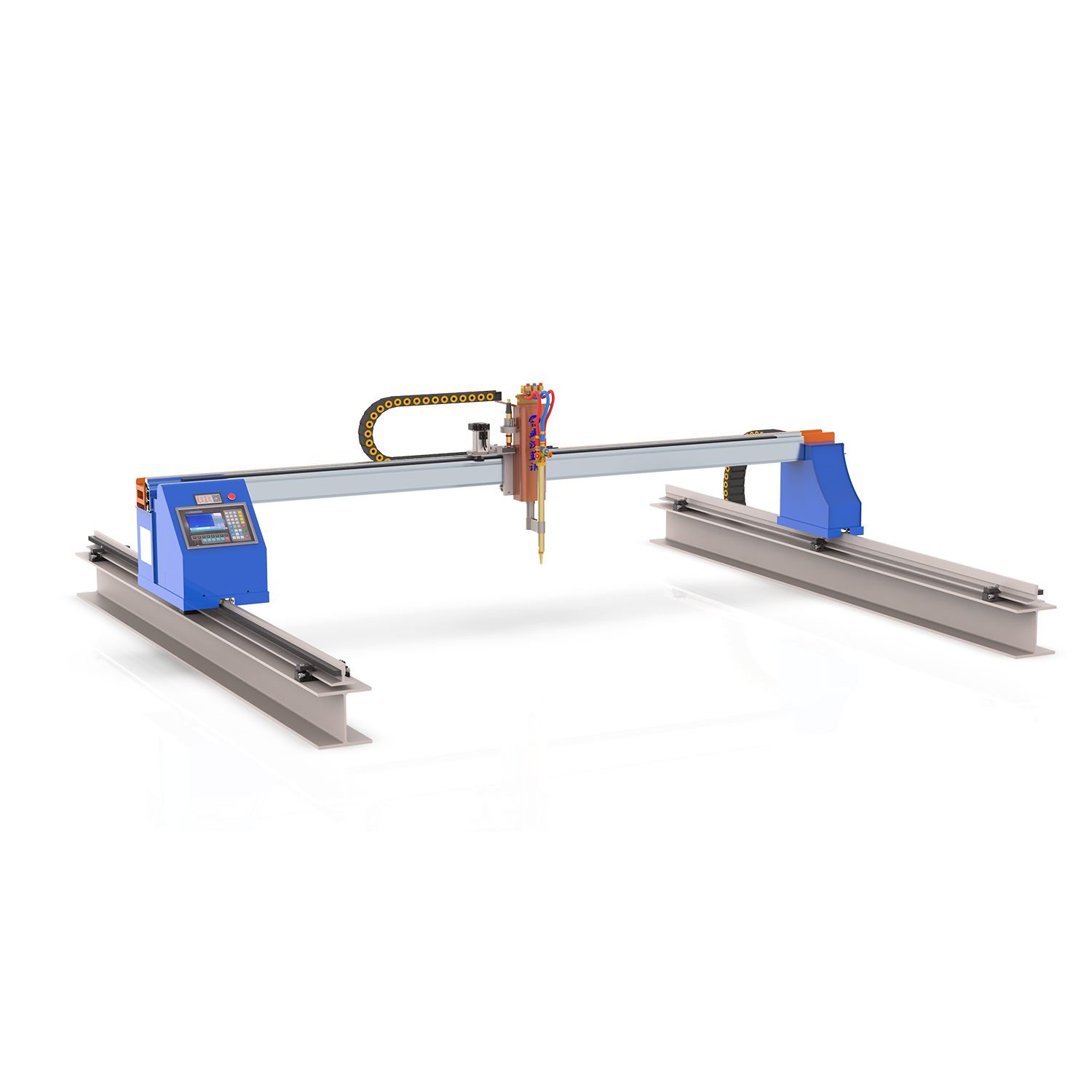

position:Home > PRODUCT > SHEET METAL CUTTING > PLASMA >Gantry CNC Plasma Cutting Machine
MODEL: Main machine accessories: cutting machine unit plasma source/plasma cutting gun/Arc automical height controller flame cutting torch CNC control system(Beijing Star/ Fangling) Nesting program(Fastcam)

Price negotiable,Please contact the product specialist)

Online message contact back

SPECIFICATION

VIDEO

GUIDE

CASE

ADVANTAGE

SOLUTION

Main machine accessories:


cutting machine unit


plasma source/plasma cutting gun/Arc automical height controller


flame cutting torch


CNC control system(Beijing Star/ Fangling)


Nesting program(Fastcam)



Our strength


1.competetive price in laser cutting machine area


2.good machine performance after sale


3.large cutting range of metal sheet laser processing.


4.complete after sale service online or door to door technical support



Depends on customers' metal plates cutting requirements


small cutting range,portable or portable gantry plasma cutting machine are highly recommended.


thin plate cutting(<30mm), plasma is faster than oxygen


carbon steel >30mm, flame/Oxygen is better than plasma


machine type depends on length and width,but also budget


Our strength


1.competetive price in plasma cutting machine area


2.good machine performance after sale


3.Automatic ignition device


4.complete after sale service online or door to door technical support



Technical specification:

Cross Beam Length(X axis)

3m

Longitudinal Rail Length(Y axis)

m ( can be customized)

Effective Cutting Width (X axis)

2000 mm

Effective Cutting Length (Y axis)

7000 mm

Cutting Mode

Plasma & Flame/(oxygen)

Drive Mode

Dual-drive

Drive Method

Rack and pinion drive for X and Y axis

Flame Cutting Thickness

 Up to 160 mm

Plasma Cutting Thickness

Depends on plasma source

Cutting Speed

-

Moving Precision

0.01mm per step

Power Source (option)

220V 50Hz 500-1000W

Nesting Software (option)

INTERGNPS, FASTCAM

Cutting Gas

Acetylene/ Propane +Oxygen

Plasma Gas


Automatic Torch Height Controller

CHC600

Capacitive torch height controller for flame cutting

Plasma Torch height controller
Arc THC
