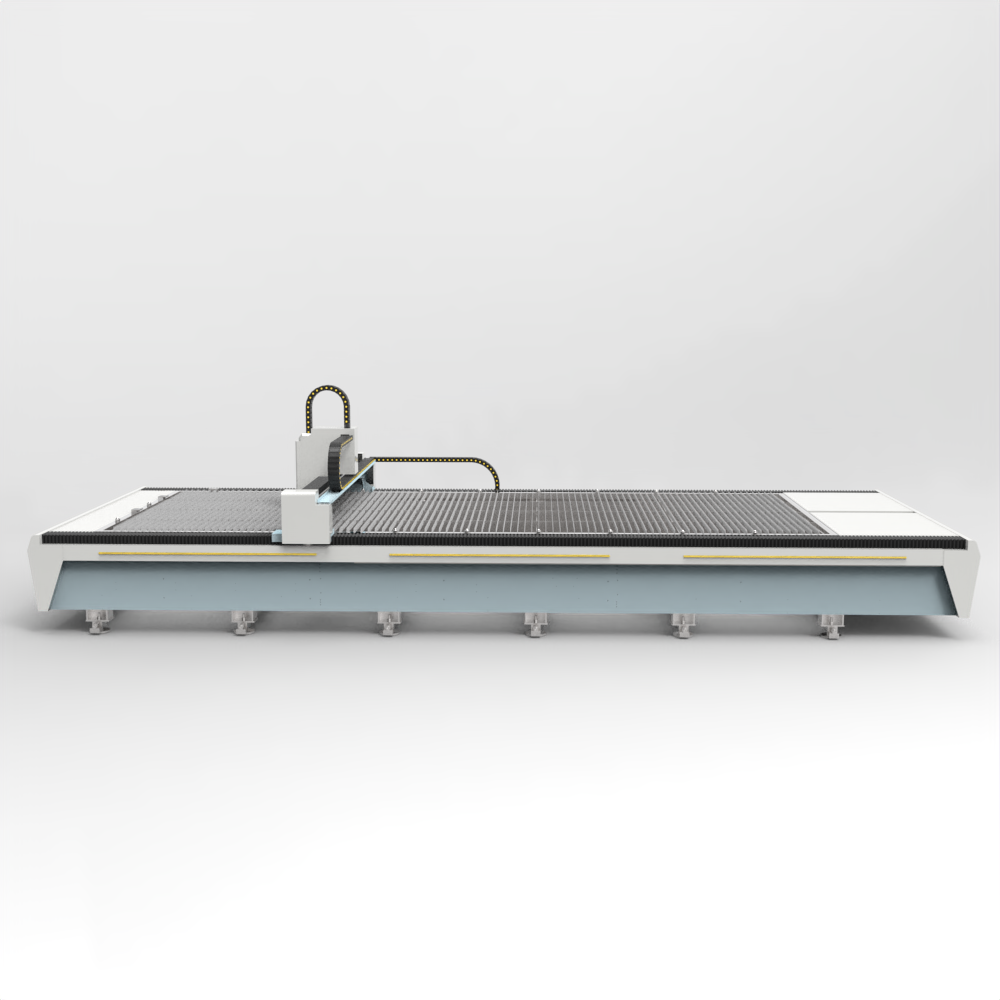

position:Home > PRODUCT > SHEET METAL CUTTING > FIBER LASER>TableType CNC Fiber Laser Cutting Machine
MODEL:ZLDL-3015 Laser source: Raycus/Max/Feibo 1KW-20KW Cutting Head: Empower/WSX/OSPR Control system:Weihong/Cypcut Water chiller: Hanli Serve drive: Japan Pansonic Our strength 1.competetive price in laser cutting machine area 2.good machine performance after sale 3.large cutting range of metal sheet laser processing. 4.complete after sale service online or door to door technical support

Price negotiable,Please contact the product specialist)

Online message contact back

SPECIFICATION

VIDEO

GUIDE

CASE

ADVANTAGE

SOLUTION

Laser source: Raycus/Max/Feibo 1KW-20KW

Cutting Head: Empower/WSX/OSPR

Control system:Weihong/Cypcut

Water chiller: Hanli

Serve drive: Japan Pansonic



Our strength


1.competetive price in laser cutting machine area


2.good machine performance after sale


3.large cutting range of metal sheet laser processing.


4.complete after sale service online or door to door technical support



Our strength


1.competetive price in laser cutting machine area


2.good machine performance after sale


3.large cutting range of metal sheet laser processing.


4.complete after sale service online or door to door technical support


List

Item

Specification

unit

Qty

Brand

Remark

machine type

3015 desktop

set

1

Wuhan Lansun

Fully finished light gantry type bed

cchuang

Laser source

1000W

set

1

Raycus


Control system

LS3000

set

1

Shanghai Weihong

Listed company

Servo drive-Y axis motor

SV-X2MH040A-N2LN

set

2

Wuhan Songke


Servo drive-X axis motor

SV-X2MH040A-N2LN

set

1

Wuhan songke


Servo drive-X axis motor



SV-X2EA040A-A

set

1

Wuhan songke


Servo drive-Z axis motor

WSEA400

set

1

Shanghai Weizhi


Laser cutting head

BT210S

pcs

1

empower

Manual focus, quick perforation cutting

High precision grinding grade helical gear

25*25DEKENI

pcs

16

Fine grinding grade 6 helical gear

Wuhan Lansun

Y-axis high precision reducer

60-8

set

2

Jointark

High precision precision planetary reducer

X-axis high precision reducer

60-8

set

1

Jointark

High precision precision reducer

High pressure solenoid valve

3A300

set

1

SMC

Japan SMC

Oxygen proportional valve

ITV2015-312L

set

1

SMC

Japan SMC

Oil circuit lubrication system

YS-600

set

1

Nanjing

Manually lubricate linear guides and racks

Relay group

G9EA-1

set

1

Omron Automation

Japan Omron Automation

Photoelectric limit group

EE-SX3009

set

1

Omron Automation

Japan Omron Automation

Horizontal linear guide

HG25CA2R

meter

8

ROUST

High-speed, high-precision, low-noise linear guide

Longitudinal high precision cylindrical guide

SBR30-7580

pcs

2

ROUST

High-precision grinding grade cylindrical linear guide

DC power supply

RS-100-24VDC

set

1

Taiwan meanwell

24V DC

Whole machine pressure-resistant air pipe

M10

set

1

SAMSAN

Korea  SAMSAN

Whole machine cable

TRVVP

set

1

shanghai maosheng

Laser dedicated tank drag chain cable

Longitudinal drag chain

100*75*5000

meter

1

Hebei cangzhou

Fully enclosed energy chain

Horizontal drag chain

100*75*3000

meter

3

Hebei cangzhou

Fully enclosed energy chain

Computer host in the control cabinet

INTEL I3

set

1

Taiwan  advantech

The first brand of industrial computer

monitor

AOC

1

AOC

17 Inches

Z-axis laser head lifting body

LS-150

set

1

Wuhan Lansun

Precision ball screw + double linear guide

Water Chiller

HL-1000W

set

1

Dual temperature and

dual control

Wuhan Hanli
